Home » Force Measurement Instrument » Ultrasonic Tightening Tester - TT2000

Ultrasonic Tightening Tester - TT2000

Modern TradersSpecifications

Changes in bolt tightening that occur over time can be detected by ultrasonic nondestructive tests. Application
  • For measuring axial bolt tension and determing tightening torque.

Features
  • Color display.
  • Compact, light weight, suitable on the operation of field.
  • With variety of functions - lamination of wave, wave detection change, AGC (auto gain control) etc.
  • Bolt dimension is modified by graphic and dimension input is displayed in red.
  • Interactive communication to PC.

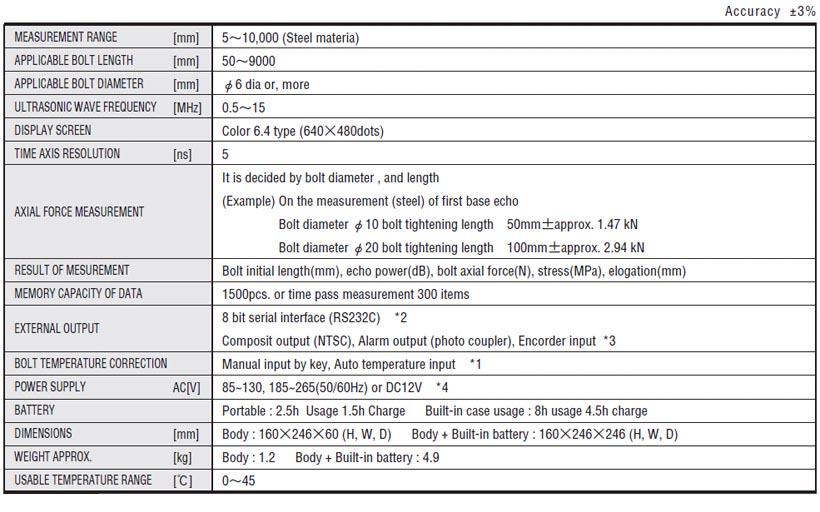

Specifications
  • Auto temperature compensation is available to connect option thermometer on TT2000C, TT2000M in the limit of -40 - 200℃. Measurement at 60℃ and more requires the sensor for high temperature.
  • Communication function by RS232C is available only for TT2000C, TT2000M.
  • Composite output, alarm output, encoder input are available to use multi connector box supplied for TT2000M or battery built-in case for option.
  • DC12V is only available to use with portable battery or battery built-in case of option.
TT2000 Ultrasonic Tightening Tester



TT2000 Ultrasonic Tightening Tester
