Home » Tohnichi Torque Driver » Tohnichi Torque Driver - LTD

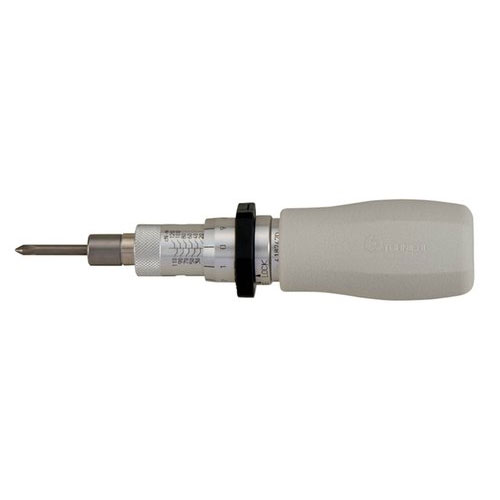

Tohnichi Torque Driver - LTD

Modern TradersSpecifications

For small screw tightening.

Application
  • For all kinds of small size screw tightening from mass production to maintenance services.
Features
  • Non rotary slip clutch.
  • Toggle type torque detection mechanism ensures accuracy and long durability.
  • When set torque reaches, the break is felt by hand.
  • Easy torque adjustment.
  • Locking mechanism prevents the change of torque while in use. (LTD15CN - 260CN only)
  • Applicable to use in the EU region. Comply with calibration procedures of ISO6789 Type II Class D.

Specifications
  • For LTD260CN - 2000CN, preset hook spanner is supplied as standard accessory.
  • For LTD120CN, 260CN, resin grip is supplied as standard accessory.
  • For LTD2000CN, auxiliary tightening tool is supplied as standard accessory.
  • For LTD500CN, 1000CN, optional auxiliary tightening tool is available.
  • Bits for LTD2000CN are supplied from only Tohnichi.
  • Standard bit, 6.35 HEX is available, except for LTD2000CN.
LTD Adjustable Torque Driver

S.I.
Model
Capacity
[N*M]
Metric ModelCapacity
[kgf*cm]
Dimension
[mm]
Weight
[kg]
Amer
-ican Model
Capacity
[ibf*in]
LTD15CN2~150.11.5LTD0.2~1.50.011001610.71121.51875~82.80.051.5LTD-A0.2~1.5
LTD30CN4~300.23LTD0.4~30.023LTD-A0.4~3
LTD60CN10~600.56LTD1~60.0510519.514.826.52479.1~88.10.086LTD-A1~6
LTD120CN20~120112LTD2~12 0.112024183097~1070.1312LTD-A2~12
LTD260CN60~260226LTD6~26 0.214030.52337.5113.8~123.80.2226LTD-A6~26
LTD500CN100~500550LTD10~50 0.251503326-126~1380.3350LTD-A10~40
LTD1000CN200~1000100LTD20~100 0.518043321225148~1600.58100LTD-A20~90
LTD2000CN300~2000200LTD30~200 25548352535206~231.51.15200LTD-A30~180
