Home » Tohnichi Torque Wrench » Indicating Type Torque Wrench - DBE700N

Indicating Type Torque Wrench - DBE700N

Modern TradersSpecifications

Application
  • For inspection (or tightening).

Features
  • Wide range, high accuracy, lightweight, easy-to -read large scale,
    suitable for inspection.
  • DB-S model is equipted with a memory pointer to capture peak torque reading.
  • Since the dial is movable, the pointer can be set to the desired torque
    first and complete tightening as the poiter indicates "0".
  • The dial indicator has a protective cover to prevent damage to external objects.
  • The accuracy of DB/DBE/DBR is consistent regardless of force point.
  • DBE models come with extension bar. For DBR models applies
    load by lever block or winch.
  • Applicable for international use including the EU region, Compliant
    with calibration procedures of ISO 6789 Type I Class B.
  • DB/DBE/DBR models are available to use in Russia.

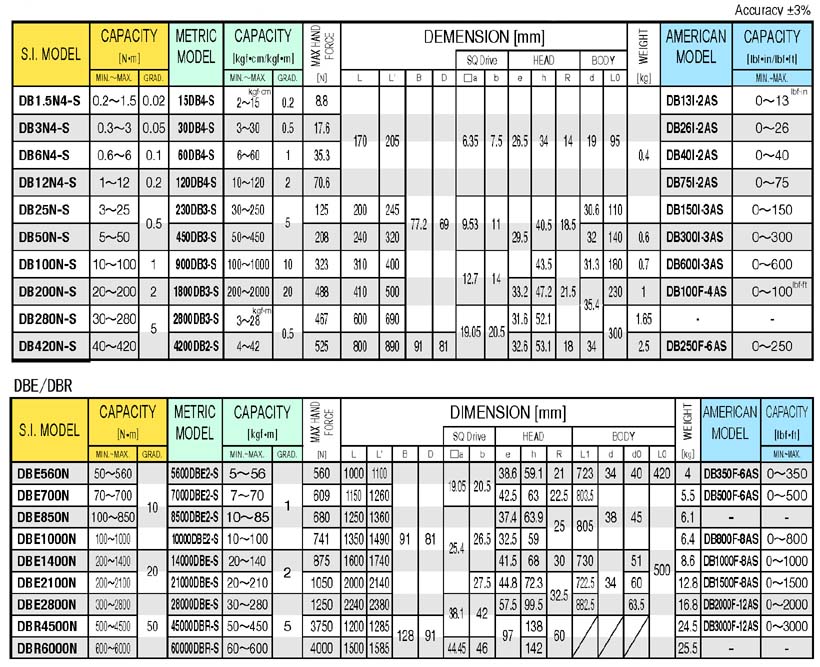

Specifications
  1. Overall dimension is same with or without a memory pointer.
  2. DB25N - DB280N comes with resin grips.
  3. DBR models are supplied upon request.
DBE700N Torque Wrench



DBE700N Torque Wrench
