Application - For inspection (or tightening).
Features - Interchangeable head version of DB model.
- CDB is equipped with a memory pointer as standard to capture peak torque reading.
- Since the amount of deformation is small, the operator's fatigue
is reduced compared to the flat beam type torque wrench. - Since the dial is movable, the pointer can be set to the desired torque
first and complete tightening as the pointer indicates "0". - The dial indicator has a protective cover to prevent damage to external objects.
- Compliant with calibration procedures of ISO 6789 Type I Class B.
Specifications - Overall length does not include interchangeable head.
- PH(Pipe wrench) type interchangeable head can not be used for this model.
- CDB25N - CDB200N come with a resin grip.
| |

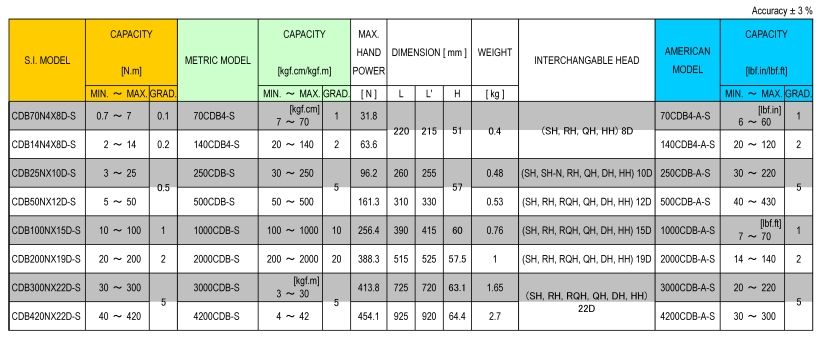

Specifications
