PHP Series Digital force gauge is an efficient testing equipment.It with facility, high resolution, peak hold, large memory, inductive background light, three unit advantages, which is used no only for simple measurement of tension / compression force, but also used for various testing purpose;such as electric, electric wire cable, hardware, automobile, chemical industry, building, spring manufacture, medical instrument, printing, lighter industry, textile, zipper button, scientific research institution, and fracture test. It also with an analysis software to get synchronous graph. Specification : - High accuracy & high resolution
- Peak hold function
- Peak automatic clearance function
- Tolerance limit (Up and down limit)
- Automatic power off function
- 3 units available: N,kgf,lbf
- Full range 150% overload
- Reset acceleration of gravity function

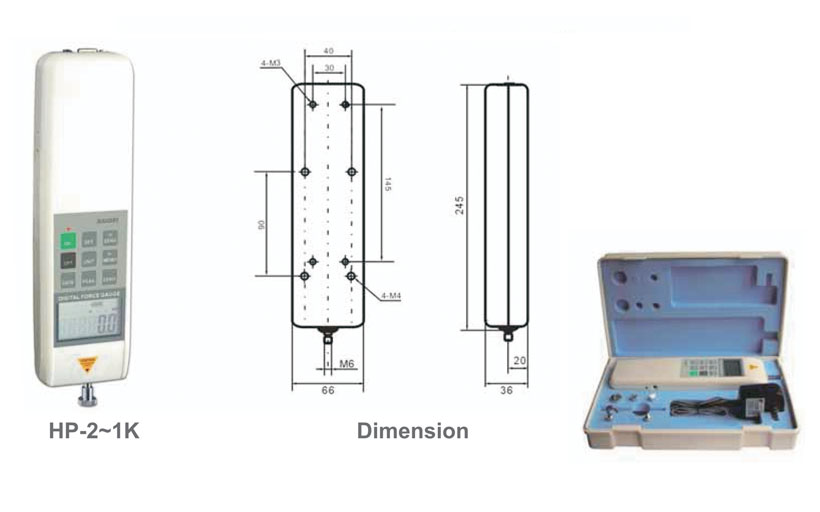

- 2 set of different installation size
- LCD screen turn direction function
- Large memory
- Inductive background light
- RS-232C port
- Match a synchronous test software (software is optional), it can connect to PC to get synchronous graph, and also can reserve, print, analysis, and so on
Parameter: | |
Specifications
