For tightening fine screws (M1-M2). Application - For watches, precision electronic equipment, computer, etc.
Features - For fine screws.
- A feature toggle type torque detection mechanism ensures accuracy and long durability.
- When set torque reaches, the break is felt by hand.
- Non-rotary slip clutch.
- Easy torque adjustment.
- Used for steady precision operations with finger touch structure.
- Applicable to use in the EU region. Comply with calibration procedures of ISO6789 Type II Class D.
Specifications - Bits for AMLD are supplied from only Tohnichi.
- Standard bit, 6.35 HEX is available for BMLD.
| |
Technical specification S.I.
Model | Capacity
[cN*M] | Metric Model | Capacity
[kgf*cm] | Dimension
[mm] | Weight
[kg] | Accessory bit | Amer
-ican Model | Capacity
[ibf*in] | | AMLD1CN | 0.3~1 | 0.01 | 100AMLD | 30~100 | 1 | 83 | 9 | 8 | 13 | 48 | 14 | 14 | 0.026 | #0 | 0.15x1
0.2x1.5
0.3x2 | - | -2 | | AMLD2CN | 0.5~2 | 0.025 | 200AMLD | 50~200 | 2.5 | AMLD3Z | 1~3 | | AMLD4CN | 1~4 | 0.05 | 400AMLD | 100~400 | 5 | AMLD6Z | 2~6 | | AMLD8CN | 2~8 | 0.1 | 800AMLD | 200~800 | 10 | AMLD12Z | 3~12 | | BMLD15CN2 | 2~15 | 1.5BMLD2 | 0.2~1.5 | 0.01 | 116 | 15 | 11 | 15 | 62 | - | 10 | 0.05 | - | - | 1.5BMLD2-A
3BMLD2-A | 0.2~1.5
0.4~3 | | BMLD30CN2 | 4~30 | 0.2 | 3BMLD2 | 0.4~3 | 0.02 |
|
© Modern Traders, Mumbai. All Rights Reserved (Terms of Use)

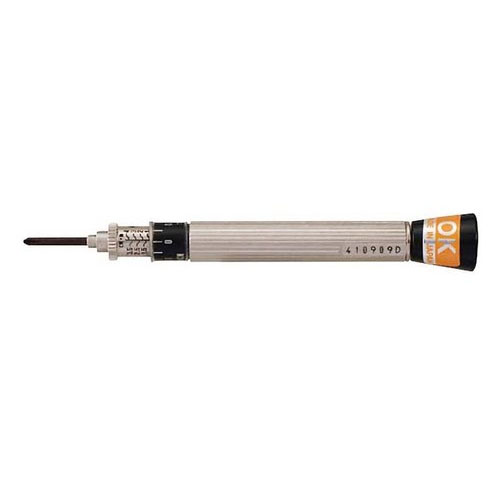

AMLD/BMLD For Fine Screw, Adjustable Torque Driver
