Pneumatic angle wrenches, high speed fully automatic.

Application

• For single purpose bolt tightening on the assembly line.

Features

• Preset type.
• Fully automatic angle wrench provides high efficiency from provisional tightening with high speed to final tightening in one process.
• Fluctuation of the air pressure does not affect the accuracy or repeatability.
• Two types are available for high and low air pressure, for M6 to M16 bolts.
• Small reaction force comparing to the torque capacity.

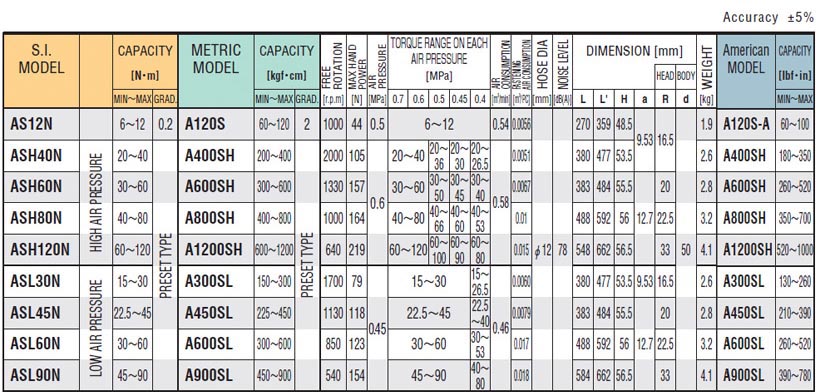

Specifications

• ASH120N with extension unit. Overall length 842mm, Max hand power 165N and weight 4.7kg.
• Torque adjust key is supplied as standard accessory for AS12N. For the other models open wrench and torque adjust key are standard accessory.
• Torque setting is required. Please specify the required set torque when ordering.
• Please use an impact socket.
